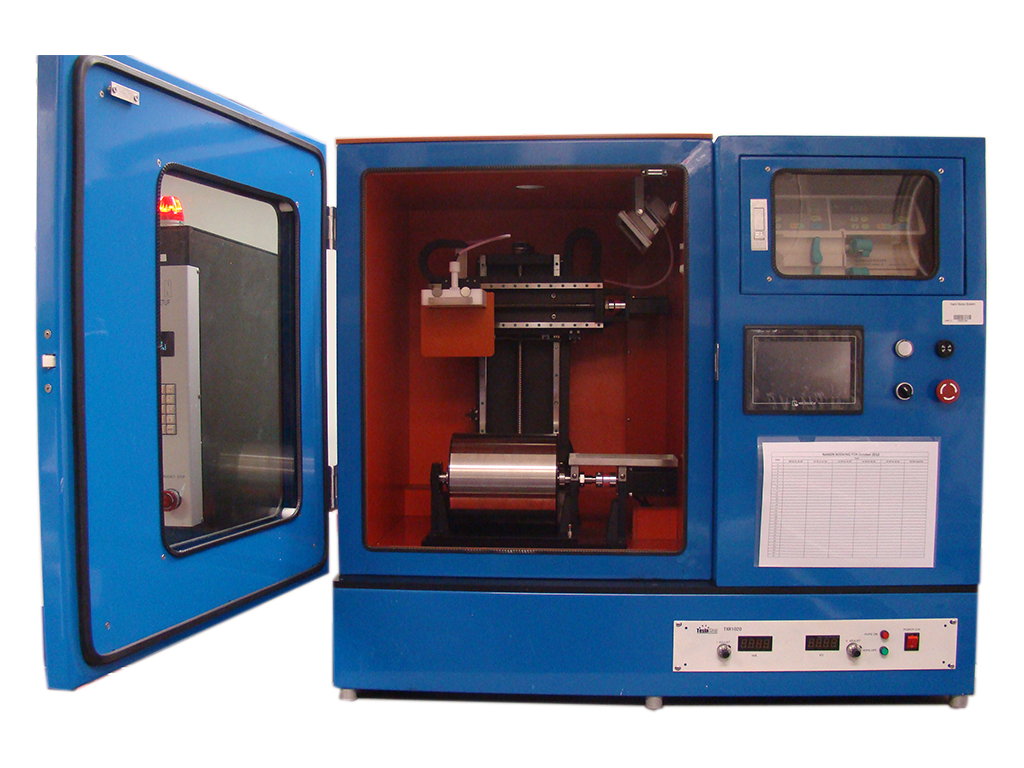

i-SPIN-DT Desktop Nanofiber Electrospinning Machine was designed to develop sample nanofiber membranes used in primarily textile and air filtration, but also in chemistry, medical, medicine, construction and agriculture industries.
Machine mainly composed of high voltage power supply, dual channel syringe pump, electrospinning chamber, touch screen panel, operation buttons, and electronic control box. The machine uses PLC control and touch screen which makes nanofiber production easy, reliable and safe.
Specifications
| Dimension | 1100 × 650 × 950 (mm) |
| Weight | 245kg |
| Color | Sapphire blue |
| Power Requirement | 200~240V (AC), 50Hz, 5A |
| Resolution of Voltage | 30 V |
| Resolution of Current | 2 µA |
| High Voltage Power Supply | 0-30 kV adjustable, 0-2000 µA adjustable |
| Temperature Control Range and Accuracy | Room temp up to 40℃, +/-0.5 ℃ |
| Temperature Uniformity | +/-1.0 ℃ |
| Attached Devices | High Voltage Power Supply, Dual Channel Micro-Infusion Syringe Pump |
